GHZ Lifting Module

The GHZero is a revolution in hoist design providing the most discreet hoist system ever. The patented design conceals the complete hoist mechanism within the track meaning the system is virtually invisible. With a SWL of 255 kg (40 stone), the GHZero is also suitable for larger users.

The standard loop-type spreader bar is available in three sizes for adult and paediatric use. Unique wall mounted rails can be fifitted to almost any substructure, including single skin plasterboard walls, without the need of additional structural support. By integrating the hoist mechanism into the track, lifting height is maximised, making the GHZero superbly suited to installations with low ceilings, such as converted garages.

Spanning up to 5 metres, the GHZero can be used in most environments, with the white powder coated tracks blending in effortlessly; for extra luxury and atmosphere, LED lights can be fitted in the track.

Unique, Invisible, Flexible & Functional

The invisible hoist system

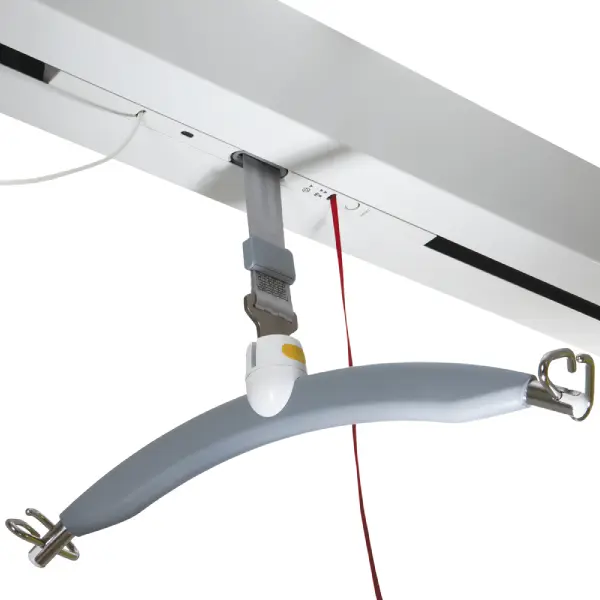

The new GHZ is a discreet and almost invisible ceiling hoist system offering a safe, comfortable and efficient solution for the lifting and transferring of patients. The unique patented design conceals the hoist unit within the track, giving the system a seamless, invisible look.

Increased lifting height – The hoist system is built within its traverse rail, which minimises the built-in dimensions and adds to the lifting height of the hoist the system.

The GHZ provides an extended lifting height which is often a crucial factor in rooms with lower ceilings. This hoist system is perfect for garage conversions, older buildings with low ceiling heights and situations where lift height needs to be maximised. The GHZ’s amazing innovative design gives it an extreme advantage compared to other hoists on the market.

Discreet appearance – The GHZ ceiling hoist can be parked discreetly anywhere on the track, whilst the lifting hanger and sling can be stored out of sight in a built-in cupboard. A ‘through-going’ rail system provides complete coverage of a room. It also provides an effective and direct transfer from room to room e.g. bedroom to bathroom.

Easy to use – All operation elements are clearly defined and intuitive to use. The hoist system is operated by its handset, which clips onto the lifting hanger when not in use. The GHZ ceiling hoist is extremely easy to clean due to its sleek and simple design. Not only is the hoist used for room transfers, it is also used for gait training, balance training and personal care.

Flexible installation – The GHZ ceiling hoist is simple to install and uninstall on both new and existing buildings. When mounting in walls, it will automatically compensate for non-aligned (oblique) walls with up to 80mm.

Discreet and elegant – The simplistic and innovative design of the GHZ allows it to blend into all care environments.

Easy and efficient – Extremely easy to install and re-install directly onto all kinds of wall material.

Simple and flexible – The GHZ enables users complete coverage and an effective, smooth transfer from room to room.

Improved lifting height – Compared with other ceiling hoists, the GHZ offers valuable lifting height.

Call Multicare today on 0800 298 6000 to discuss how the GHZ can improve safety in your property and moving and handling procedures.

Almost Invisible

With no visible motor, the GHZero maximises lift height, and is also perfect for installations where minimum visual impact is a necessity.

Designers Dream

Multiple options for discrete integration. The spreader bar can be concealed in a cupboard, whilst the wall rails can integrate lights and accessories.

Easy to Use

Mounted on low friction rollers, the GHZero is effortless to move, and has simple, intuitive hand controls for ease of use.

Reliability

Based on proven hoist technology, the GHZero benefits from outstanding reliability, with an expected 15 year lifespan.

SWL	255kg
Weight of Unit	8kg
Voltage	24v
Width	155mm
Depth	172mm
Track Length	< 5 metres
Tape Length	2500mm (98”)
Lift Speed	40mm
Decent Speed	40mm/second
Services	Installation, commission, maintenance, servicing, LOLER, training
Free	Site survey
