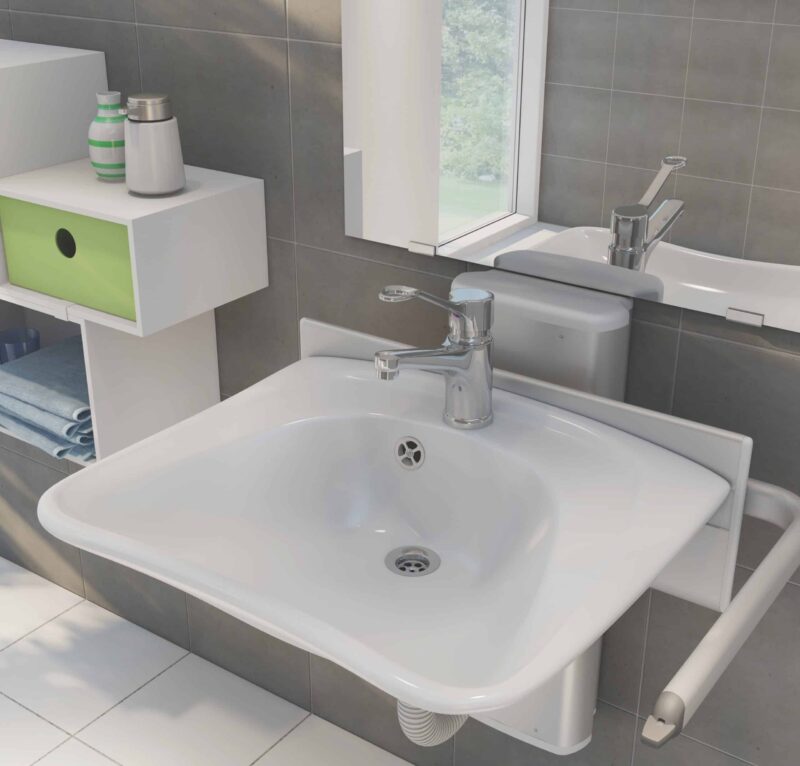

PLUS Basin
The PLUS is a cost-effective height-adjustable wash basin bracket that can be specified to meet varying needs. It is available either as a powered unit, with either lever or wired hand control or as a gas strut-assisted unit with lever control.
The controls can be fitted on either the left or right side of the bracket, and there is a range of basins to suit the user’s needs. For ultimate flexibility, it can also be fitted onto the Pressalit wall rail enabling sideways movement.
Economical, Adaptable & Dependable
A cost-effective height-adjustable basin option
The PLUS is a cost-effective height-adjustable wash basin bracket that can be specified to meet varying needs. It is available either as a powered unit, with either lever or wired hand control or as a gas strut-assisted unit with lever control.
The controls can be fitted on either the left or right side of the bracket, and there is a range of basins to suit the user’s needs. For ultimate flexibility, it can also be fitted onto the Pressalit wall rail enabling sideways movement.
Lever Control
A lever control for height adjustment offers easy access to wheelchair users. The lever can be fitted either on the left or right-hand side of the
basin.
Wired Hand Control
The wired hand control option works best with compact basins where space for a lever is restricted.
Compact Design
The Matrix Small basin offers a more compact basin with contemporary squared edges and integral hand grips.
FAQs
What environments is the PLUS basin bracket suitable for?
The PLUS bracket is suitable for accessible bathrooms, SEN settings, care homes, healthcare facilities, institutional buildings, and domestic adaptations where flexibility for seated and standing users is required.
What height adjustment does the PLUS pasin bracket provide?
The PLUS provides up to 240–300 mm of height adjustment, depending on configuration, typically operating between 680–920 mm above floor level.
What adjustment options are available?
The PLUS bracket is available in:
Electric versions (lever or wired hand control)
Gas-assisted versions
Manual versions
This allows the specification to match the expected frequency of use and budget.
How is the height adjustment operated?
Adjustment can be controlled via:
Lever control, suitable for wheelchair users and occasional adjustment
Wired hand control, useful where basin size or space restricts lever use
Controls can be positioned on either the left or right side.
Can the PLUS bracket move sideways as well as vertically?
Yes. When installed on a Pressalit wall rail system, the PLUS bracket can be specified with sideways movement, allowing greater flexibility in shared or multi-user environments.
Which wash basins are compatible with the PLUS bracket?
The PLUS bracket is compatible with Matrix Small and Curve wash basins, as well as selected Support and Hospital basin options, depending on configuration.
What structural support is required?
The PLUS must be fixed to a load-bearing or reinforced wall capable of supporting a maximum load of 135 kg (equivalent to approx. 151 kg user weight when tested to ISO 17966). Stud walls typically require additional reinforcement.
Is the bracket intended to support a user’s full body weight?
No. The PLUS bracket is designed to support the basin and users leaning against it, but it is not intended to carry full body weight or act as a transfer aid.
Are plumbing services concealed?
Yes. When installed with the appropriate cover or wall rail system, plumbing and fixings can be concealed, improving hygiene and protecting services from damage.
What is the Safe Working Load (SWL) of the PLUC basin bracket?
The PLUS bracket has a Safe Working Load of 151 kg, suitable for most adult users in care and accessible environments.
Is the PLUS bracket suitable for refurbishment projects?
Yes. Its compact depth, multiple adjustment options, and compatibility with wall rails make it particularly suitable for retrofit installations where future adaptability is required.
Does the PLUS bracket comply with relevant standards?
Yes. The product is manufactured in accordance with DS/ISO 17966:2016, is CE certified, and complies with applicable medical device and machinery regulations.
| SWL | 151kg |
|---|---|
| Adjustment Range | 300mm |
| Bracket Depth | 154mm |
| Bracket Width | 620mm |
| Support Basin | 600(w) x 590(d)mm |
| Hospital Basin | 640(w) x 550(d)mm |
| Warrranty | 5 years |
| Services | Installation, commission, maintenance, servicing, training |
| Options | Pressalit Wall Rail |
