Slimline Height Adjustable Wash Basin
The Slimline electrically height-adjustable basin is an elegant and practical solution, combining the functionality of a height-adjustable basin with the practicality of a mirror that adjusts with the height of the basin.

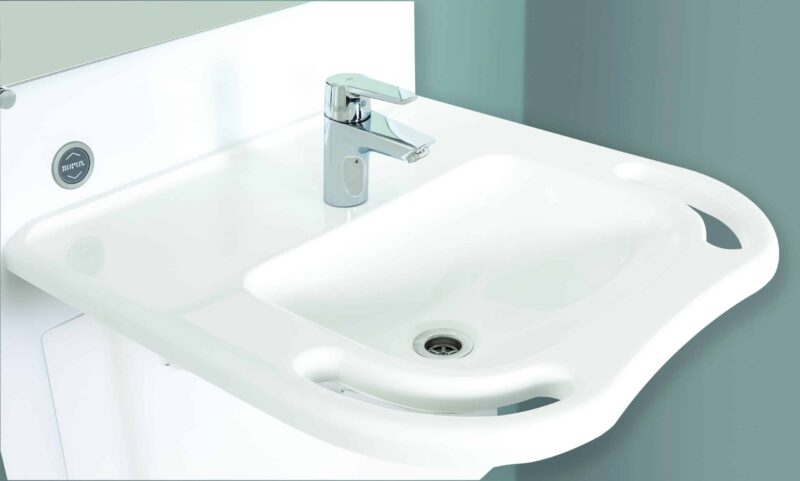

The plumbing is concealed behind a cover, protecting it from accidental damage and providing a visually appealing finish. The standard basin is generously proportioned with integral handgrips for standing.
Elegant, Practical & Versatile
Elegant yet practical
The Slimline electrically height-adjustable basin is an elegant and practical solution, combining the functionality of a height-adjustable basin with the practicality of a mirror that adjusts with the height of the basin.
The plumbing is concealed behind a cover, protecting it from accidental damage and providing a visually appealing finish. The standard basin is generously proportioned with integral handgrips for standing.
There is a choice of taps on the Slimline – as standard a long lever thermostatic tap is fitted, this can be upgraded to an infra-red version if required.
User Friendly

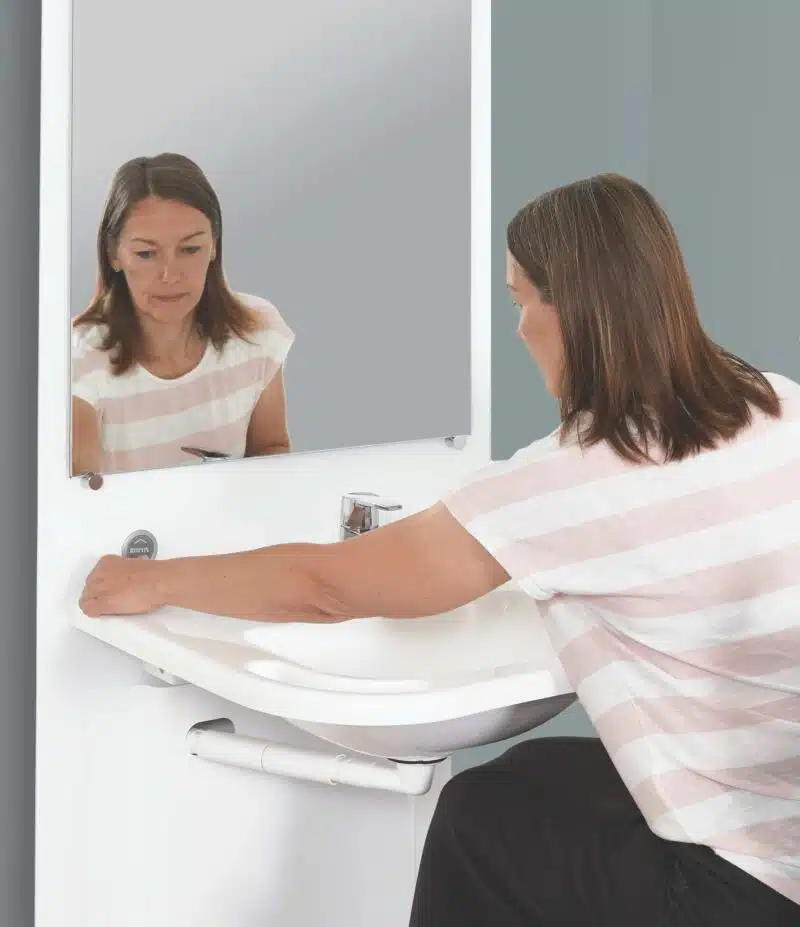

The deep basin is specifically designed for wheelchair users with a scalloped front and extra depth for support and storage.
Enablement

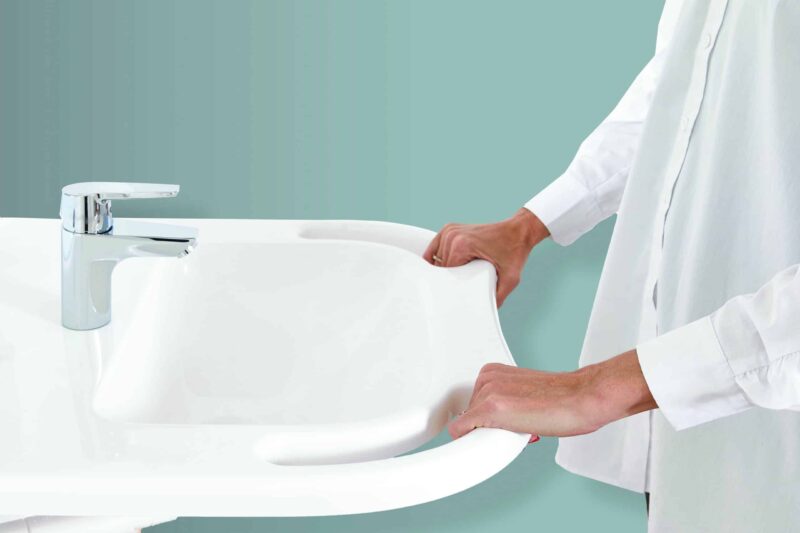

Large grips on the front of the basin enable independence as grips when standing, or for towel holders giving easy access for drying.
Adjustable
The generous height adjustment of the Slimline, combined with the integrated mirrors make the Slimline perfect for multiple users. For added luxury, a light can be fitted.
FAQs
What environments is the Slimline basin suitable for?
The Slimline is suitable for accessible bathrooms, hygiene rooms, SEN settings, care homes, healthcare environments, Changing Places facilities, and domestic adaptations where both seated and standing users require shared access.
How much height adjustment does the basin provide?
The unit provides 300 mm of electric height adjustment, allowing the basin and mirror to move together to suit wheelchair users and ambulant users.
How is the Slimline wash basin operated?
Height adjustment is controlled via the included hand control with spiral cable or an optional fixed wall control, providing flexibility depending on the installation and user needs.
What structural support is required for installation?
The Slimline must be fixed to a load-bearing or reinforced wall capable of supporting up to 200 kg maximum user weight, depending on basin configuration. Stud walls typically require additional reinforcement.
Does the mirror adjust independently?
No. The mirror is mechanically linked to the basin, ensuring it remains at the correct height for the user whenever the basin is adjusted.
Are services concealed?
Yes. All plumbing and electrical services are fully concealed behind a protective cover, providing a clean finish and reducing the risk of accidental damage.
What basin options are available?
The Slimline is available with six basin styles, allowing designers to select a model best suited to the user group and room layout.
What tap options can be specified with the Slimline basin?
A thermostatic long-lever tap is supplied as standard, with the option to upgrade to an infra-red sensor tap for touch-free operation.
Is the Slimline suitable for wheelchair users?
Yes. The basin features a scalloped front for close wheelchair access, a deep bowl for stability, and integrated front grips to support independence.
What electrical requirements are needed for the slimline adjustable basin?
The Slimline is hard-wired and operates on 230 V ~50 Hz, with an IPX6 rating suitable for bathroom environments.
Is the Slimline basin compliant with accessibility standards?
Yes. The product is manufactured in accordance with DS/ISO 17966:2016 and is CE certified, making it suitable for accessible bathroom specifications.
Can the Slimline basin be installed in refurbishment projects?
Yes. Its slim projection (80 mm from the wall) and concealed services make it suitable for retrofit installations, subject to wall reinforcement and service provision.
| Height Adjustment | 700 – 1000mm |
|---|---|
| Overall Width | 670mm |
| Overall Depth | 650mm |
| Basin Width | 600mm |
| Warrranty | 1 year |
| Services | Installation, commission, maintenance, servicing, LOLER, training |
| Options | Light |
| Basin Depth | 590mm |
