StandardLine Height Adjustable Wash Basin
The StandardLine is a functional quality washbasin suitable for private homes, institutions, and hospitals. It features electrical height adjustment, with the option of the control switch placed on the right or left side of the basin. All the plumbing and electrics are concealed behind a cover to prevent damage and create an aesthetically appealing finish.
Reliable, Cost Effective & Functional
Reliable and cost-effective height-adjustable wash basin
The StandardLine is a functional quality washbasin suitable for private homes, institutions, and hospitals. It features electrical height adjustment, with the option of the control switch placed on the right or left side of the basin. All the plumbing and electrics are concealed behind a cover to prevent damage and create an aesthetically appealing finish.
There are three types of washbasins to choose from depending on the user’s requirements,
Standard: A simple and stylish washbasin for users without any special needs
Support: A washbasin with good access and integrated handles that increases safety for users with limited physical capacity
Hospital: Porcelain washbasin with an inwardly curved front for hospitals
There is also the option of long lever or infra-red controlled taps.

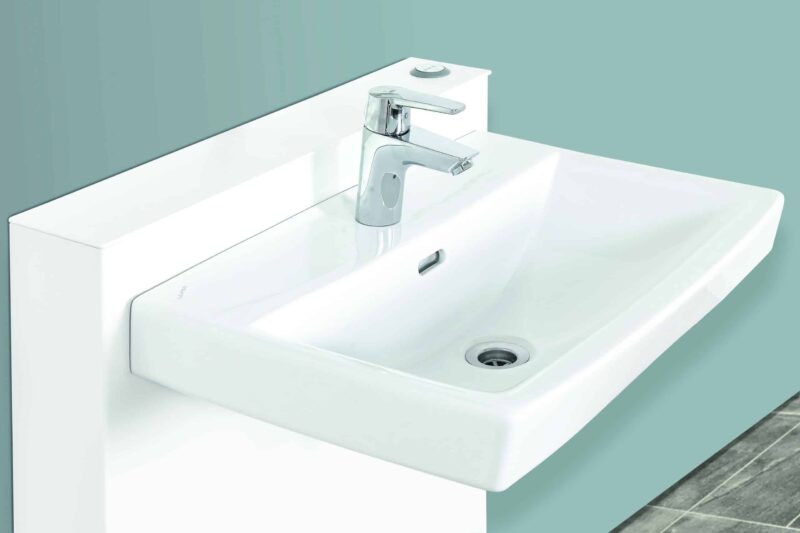

Standard Basin
The Standard basin is a compact yet roomy design with contemporary lines, perfect for the modern bathroom.

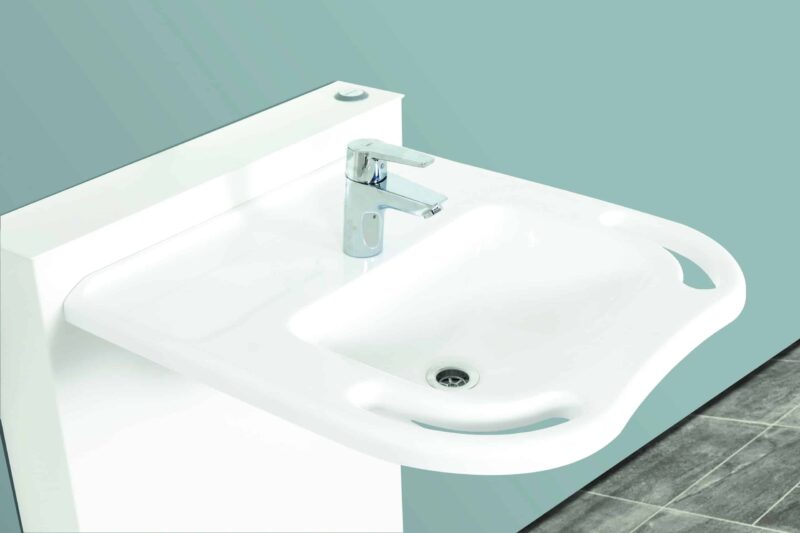

Support Basin
The Support basin is generously proportioned with integral handgrips for assistance to standing and flat areas where personal accessories can be stored.

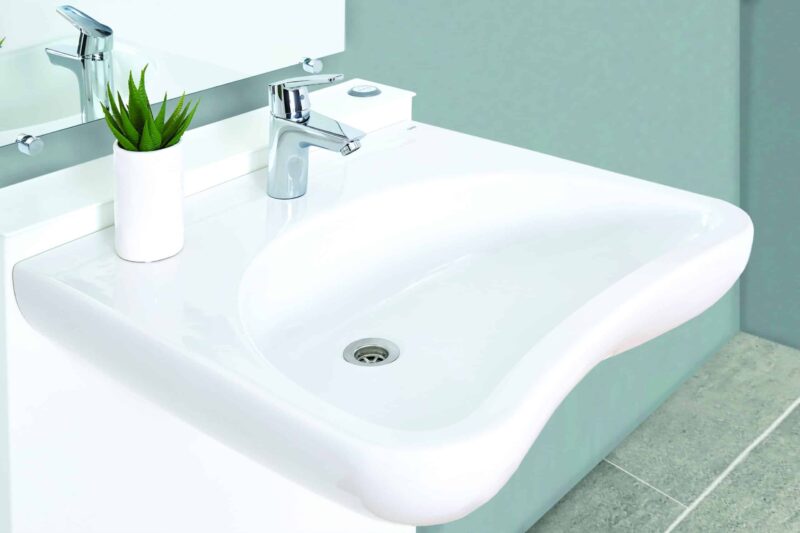

Hospital Basin
The Hospital Basin is generously proportioned with a curved front and easy to clean contours.
FAQs
What environments is the StandardLine basin suitable for?
The StandardLine is suitable for private homes, accessible bathrooms, SEN settings, care homes, hospitals, and institutional environments where a reliable and adaptable wash basin is required.
How much height adjustment does the StandardLine basin provide?
The basin offers 300 mm of electric height adjustment, allowing it to be set at an appropriate height for both wheelchair users and standing users.
How is the StandardLine wash basin operated?
Height adjustment is controlled via an included hand control with spiral cable or an optional fixed wall control. The control can be positioned on the left or right side of the basin.
What structural support is required for installation?
The StandardLine basin must be installed on a load-bearing or reinforced wall capable of supporting up to 200 kg maximum user weight, depending on configuration. Stud walls typically require additional reinforcement.
Are services concealed?
Yes. All plumbing and electrical services are concealed behind a protective cover, improving durability and providing a clean, hygienic finish.
What basin options are available?
Three basin types are available:
- Standard basin – for general use
- Support basin – includes integrated handgrips for users with reduced mobility
- Hospital basin – inwardly curved front and smooth contours for clinical settings
What tap options can be specified?
The StandardLine can be supplied with long-lever thermostatic taps or infra-red sensor taps, supporting accessible and touch-free operation.
Is the StandardLine basin suitable for wheelchair users?
Yes. The height adjustment, combined with basin options such as the Support basin, allows wheelchair users to approach the basin comfortably and use it independently.
What electrical requirements apply?
The unit is hard-wired and operates on 230 V ~50 Hz, with an IPX6 rating, making it suitable for bathroom environments.
Is the StandardLine compliant with relevant standards?
Yes. The product is manufactured in accordance with DS/ISO 17966:2016 and is CE certified, supporting use in accessible and healthcare settings.
Can the basin be used in refurbishment projects?
Yes. The flexible service routing and concealed installations make the StandardLine suitable for retrofit as well as new-build projects, subject to wall reinforcement.
What warranty is provided?
The StandardLine wash basin system is supplied with a 3-year warranty, subject to manufacturer terms and conditions.
| Overall Height | 730mm |
|---|---|
| Overall Width | 660mm |
| Bracket Depth | 120mm |
| Standard Basin | 600(w) x 410(d)mm |
| Support Basin | 600(w) x 590(d)mm |
| Hospital Basin | 640(w) x 550(d)mm |
| Warrranty | 3 years |
| Services | Installation, commission, maintenance, servicing, LOLER, training |
| Options | Wired hand control |
