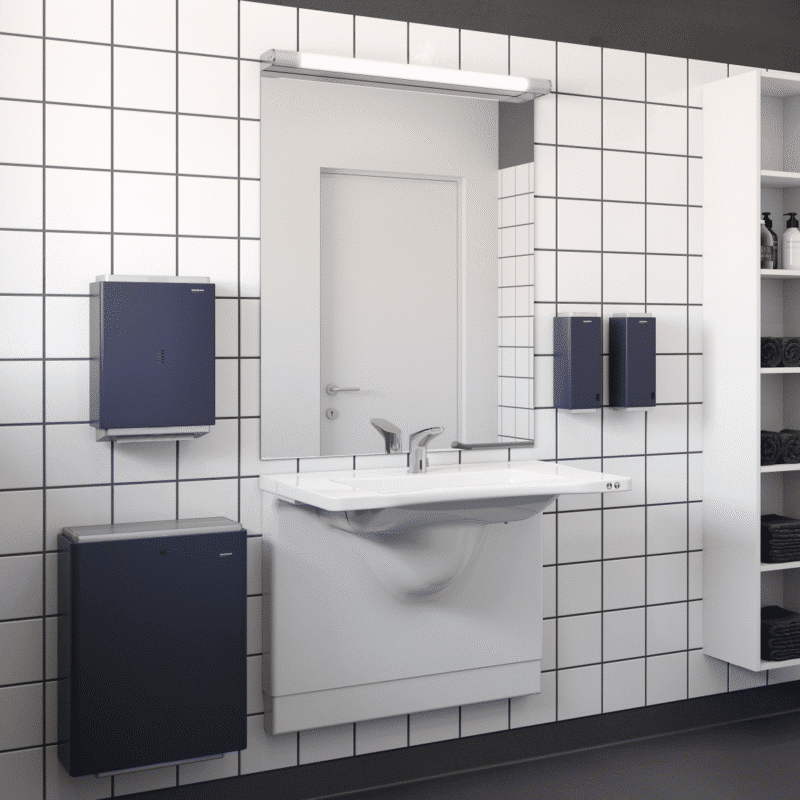

Matrix Height Adjustable Wash Basin
The Matrix is a height-adjustable basin that can be set at a convenient height range for the user. It can be adjusted at the press of a button with no manual effort required. A safety stop prevents any danger of crushing and the thermostatically controlled taps remove the risk of scalding for users with limited sensory abilities. The unique inset buttons on the front of the Matrix basin provide an elegant and user-friendly adjustment solution. They are discreet yet accessible, blending in with even the most design-led bathroom.
Wheelchair Friendly, Wall Mounted & Height Adjustable
The Matrix is a height-adjustable basin that can be set at a convenient height range for the user. It can be adjusted at the press of a button with no manual effort required. A safety stop prevents any danger of crushing and the thermostatically controlled taps remove the risk of scalding for users with limited sensory abilities.
The unique inset buttons on the front of the Matrix basin provide an elegant and user-friendly adjustment solution. They are discreet yet accessible, blending in with even the most design-led bathroom.
There are a range of options for the Matrix basin, with either a square or curved front, available in a range of sizes, and a choice of long lever or infra-red taps. The cover both protects and hides the plumbing and electrics, finished in white to blend in with contemporary bathrooms.
Materials
The Matrix basin lifter is constructed from stylish aluminium and high quality damage resistant materials to keep it looking good for longer.

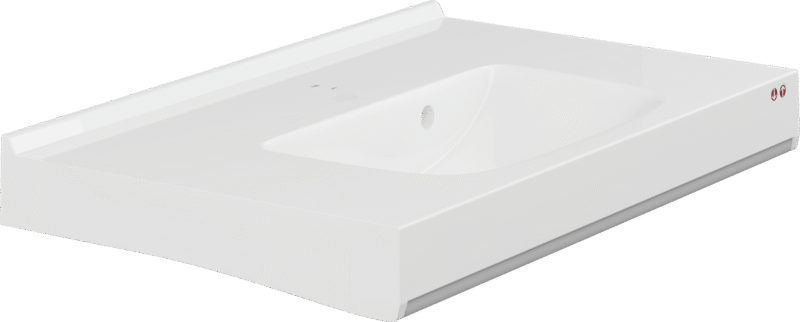

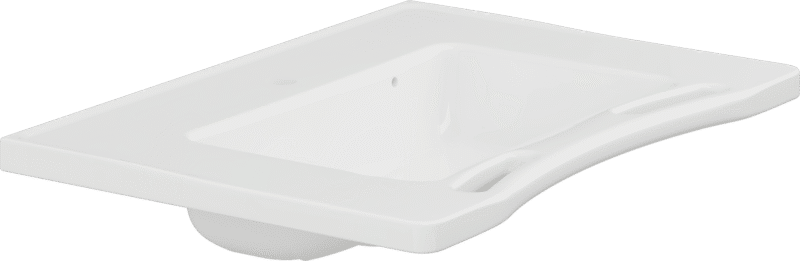

Basin
Integrated controls and a mechanism cover combine to create a basin that is good looking and well protected from accidental damage.

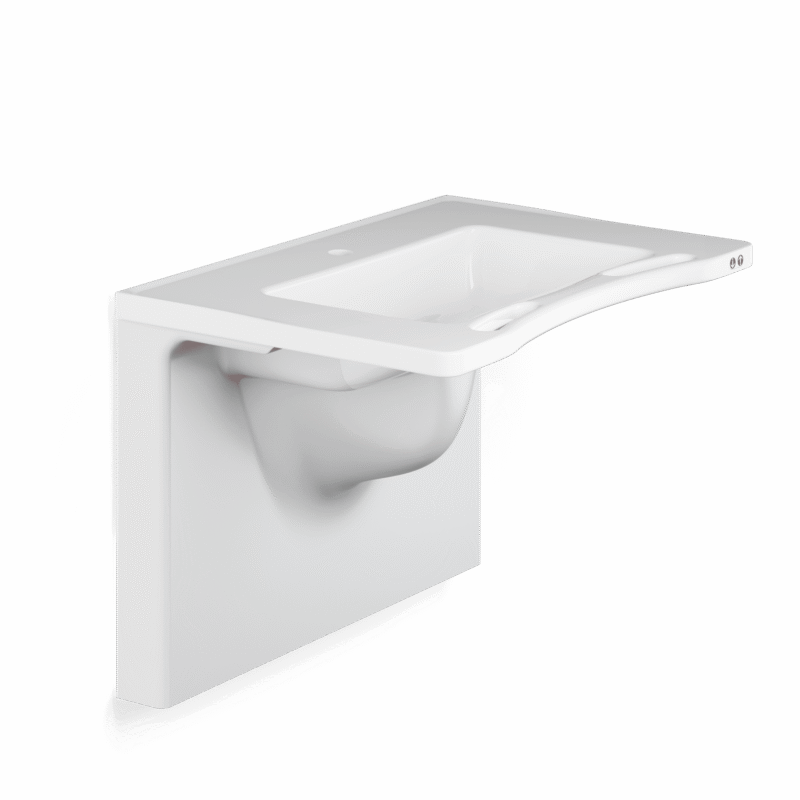

Concealed
A white protective cover prevents damage to the plumbing and electrics and fits perfectly to the contours of the basin.
FAQs
What environments is the Matrix basin suitable for?
The Matrix basin is designed for accessible bathrooms, hygiene rooms, Changing Places facilities, SEN settings, care homes, and healthcare environments where both seated and standing users require easy access.
How much height adjustment does the Matrix wash basin provide?
The basin offers 200 mm of electric height adjustment, controlled from the front edge. This allows the basin to be positioned at an optimal height for wheelchair users and ambulant users.
What structural support is required for installation of the Matrix basin?
The basin bracket must be fixed to a load-bearing or reinforced wall capable of supporting up to 167 kg maximum user weight (150 kg load + basin weight). Stud walls typically require additional timber or steel reinforcement.
What is the Safe Working Load (SWL) of the Matric height adjustable wash basin?
The Matrix has a 150 kg Safe Working Load (SWL) and is tested for a maximum user weight of 167 kg, supporting users leaning or transferring against the basin.
How is the Matrix basin operated?
Electric adjustment is controlled via integrated front-edge buttons, designed to be intuitive and accessible for users with limited mobility or dexterity.
Is the Matrix basin system suitable for rooms requiring concealed plumbing?
Yes. A full-width protective cover conceals plumbing and electrical components, protecting them from impact and facilitating a clean, hygienic aesthetic.
What tap options are available?
The Matrix wash basin can be specified with thermostatically controlled long-lever taps or infra-red sensor taps, both suitable for accessible environments. Thermostatic control prevents scalding for users with reduced sensory awareness.
Is the Matrix compliant with accessibility and medical standards?
Yes. The Matrix wash basin complies with ISO 17966:2016 (assistive products for personal hygiene) and relevant electrical and medical device standards. It is suitable for inclusion in designs requiring Part M or SEND-compliant sanitary facilities.
Does the Matrix basin require hard-wired power?
Yes. The system is hard-wired (230V~ 50/60Hz) and should be installed with appropriate isolation for maintenance, in accordance with electrical regulations.
How is the basin cleaned?
The bracket and cover use durable, easy-clean materials (aluminium and PMMA). They can be cleaned with mild detergents or approved disinfectants, but abrasive or corrosive cleaners should be avoided.
Is the Matrix bracket compatible with all basins?
No. The Matrix bracket is specifically designed for MATRIX MEDIUM wash basins (R2122/R2123). Other basin types are not compatible.
Are BIM/Revit files available?
Yes. BIM and CAD files can be supplied to support coordination, clash detection, and bathroom layout planning.
| Height | 670-970mm |
|---|---|
| Width | 780-1200mm |
| Warrranty | 1 year |
| Services | Installation, commission, maintenance, servicing, training |
| Options | Medium basin with curved front and integrated handrails |
